Description:

• Horsepower & Torque: 415 Horsepower / 415 ft. lbs. Torque
• Compression Ratio: 10.0:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Forged Pistons
• BluePrint Engines Cast Crank

Block:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness & Strength Webbing
• Improved Water Jacket Design
• 1-Piece Rear Main Seal
• Priority Main Oiling
• 4.000" Bore
• 4-Bolt Main

Rotating Assembly:

• Cast Crank
• 3.400" Stroke
• Forged 5.400" Connecting Rods
• Forged Pistons
• 28oz Externally Balanced Front and Rear


Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP9009
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 190cc Intake / 60cc Exhaust Runners


Cam Specs:

• Hydraulic Roller Cam
• .543 Intake / .554 Exhaust Lift
• 218 Intake / 226 Exhaust Duration
• @.050-112 Degree Lobe Separation


Ignition Timing:

• 34 Degrees Total at 3500 RPM

Also Includes:

• Holley 600 CFM Street Warrior Carburetor - BPP080457SA

• Dual Plane Satin Aluminum Intake Manifold - BPP302INT

• Thermostat and Thermostat Housing
• Pro Billet Distributor - BPP3023BK
• Ignition Coil - BPP82021BK
• Mustang Style Valve covers
• Harmonic Balancer
• Electric Fuel Pump Black

• 7 Quart Oil Pan
• Air Cleaner
• Polished Front Accessory Drive - BPP302FDACPS4
  • Driver Side Standard Rotation Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Air Conditioning Compressor

Assembled with Complete 4R70W Automatic Transmission Package:

• Includes Electronic Transmission Controller
• Transmission Built to 650 HP
• 2200-2600 Stall Torque Converter
• Flex Plate
• Starter
• 4 Speed, Overdrive Transmission w/Lockup
• GEAR RATIOS
• First: 2.84 :1
• Second: 1.55 :1
• Third: 1.00 :1
• Overdrive: 0.70 :1
• Reverse: 2.32 :1

Notes:

• Does not include TPS, as varies with carb or EFI type.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• Note that 4R70W transmission may require modifications/replacement of driveshaft, transmission mount, exhaust routing, etc.

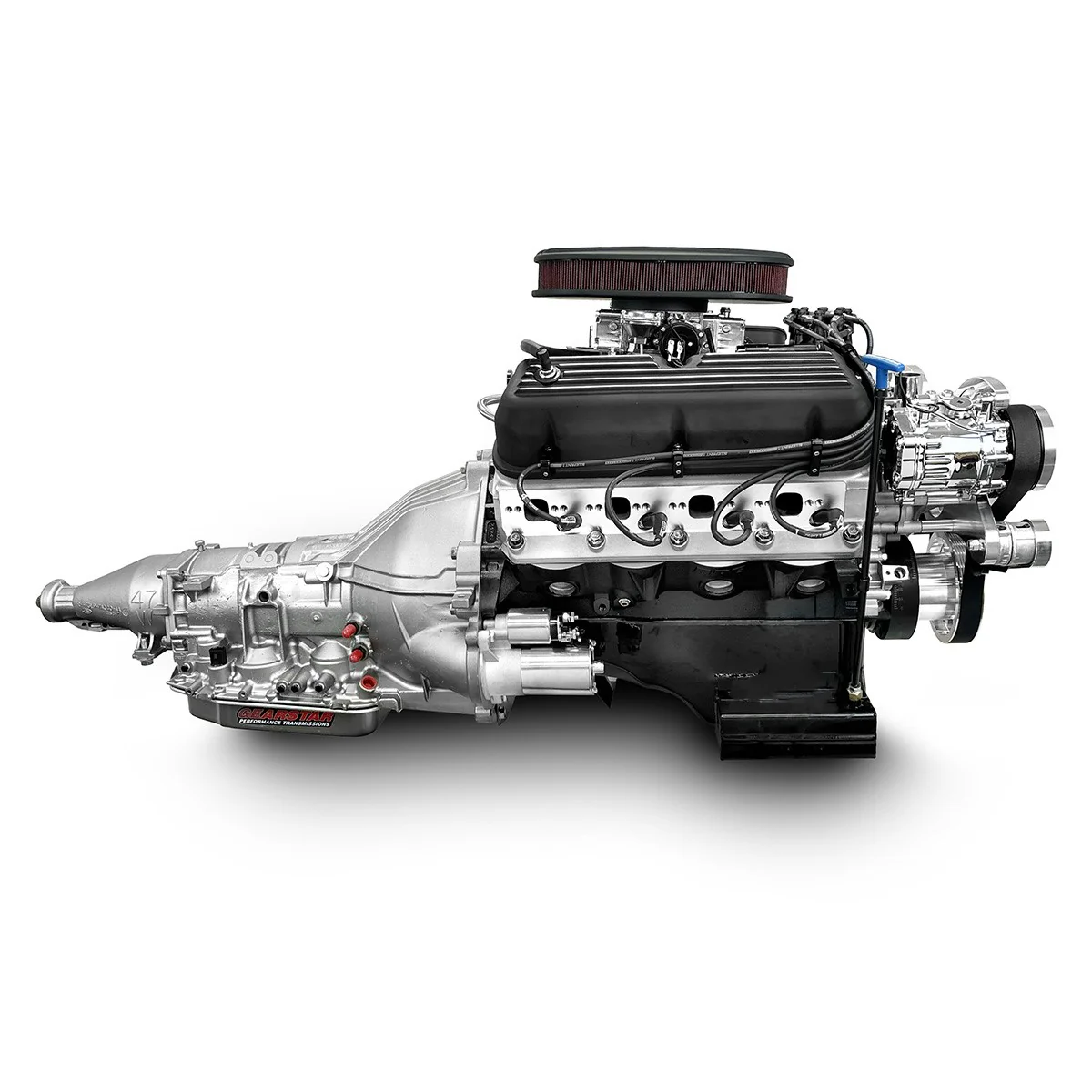

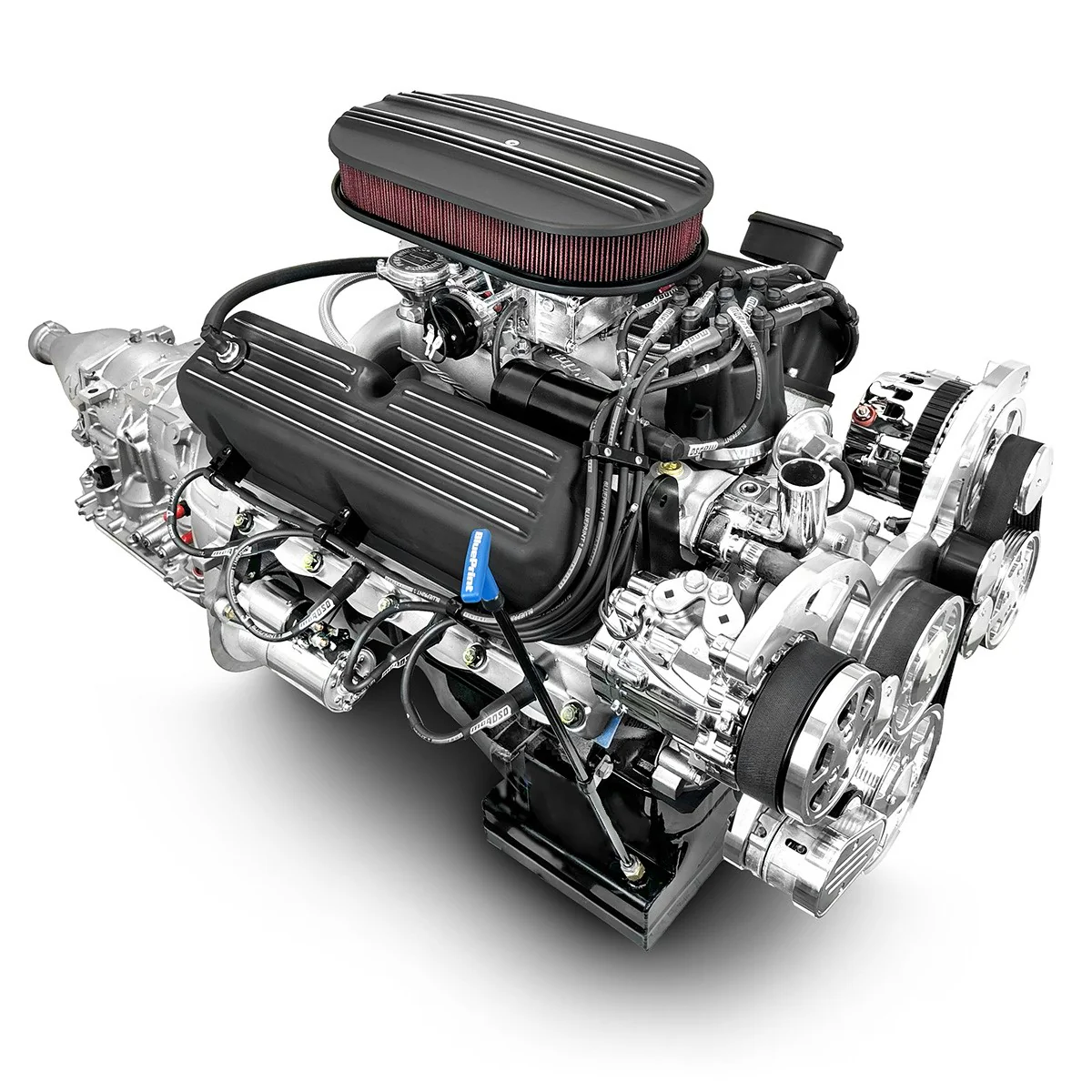

• Package Ships assembled as pictured.
• IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM
